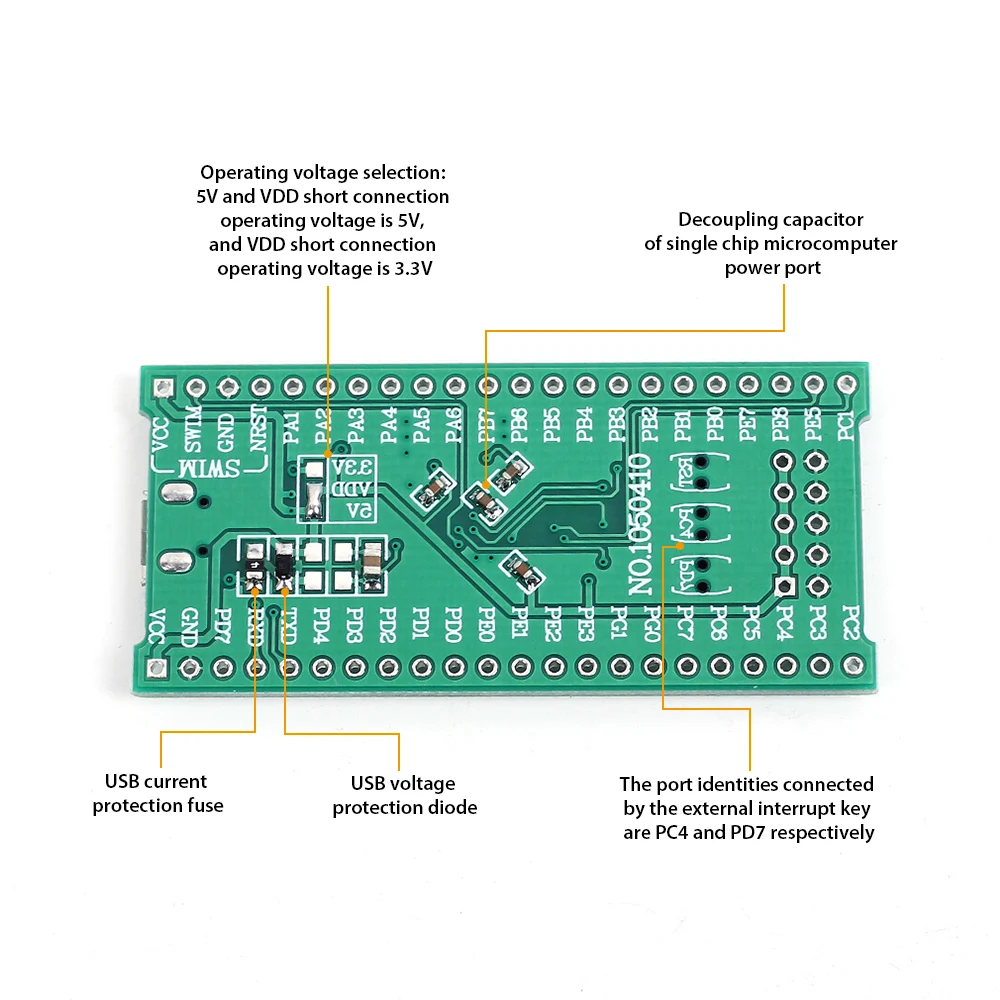

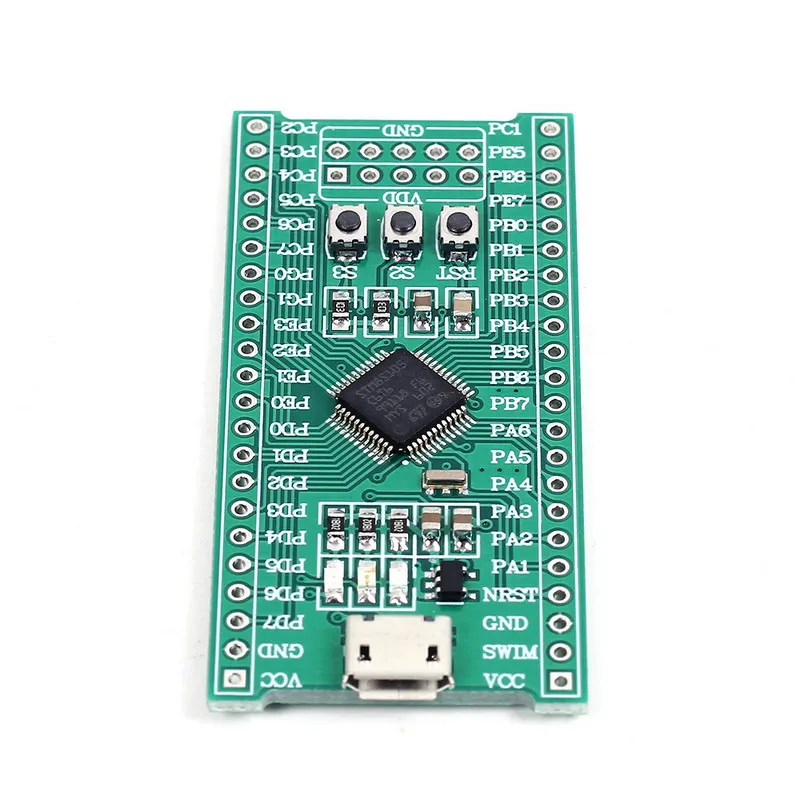

1. Description:

The module integrates STM8S105C6T6 MCU, SWIM interface, reset button, custom button, power indicator, debug indicator, 3..3V regulator chip, etc.. It is exquisite, compact and practical. STN8S105C6T6 is the mainstream MCU of STM8S series. It has built-in 32K Flash, 2KRAM, 1KEEPROM.
This module contains 38 IO outputs, 16 of which can carry high current, and 35 IO can be used as external interrupt utility, 10 AD channels.
The software developed uses IAR for STM8 or STVD. The development program is based on the standard functions provided by STM. It can save the development time and is very convenient.

2. Features:

1>. The development environment uses STVD or IAR for STM8
2>. Download the program, simulation debugging hardware tools using ST LINK/V2
3>. Using STVP or downloading programs in development environment
